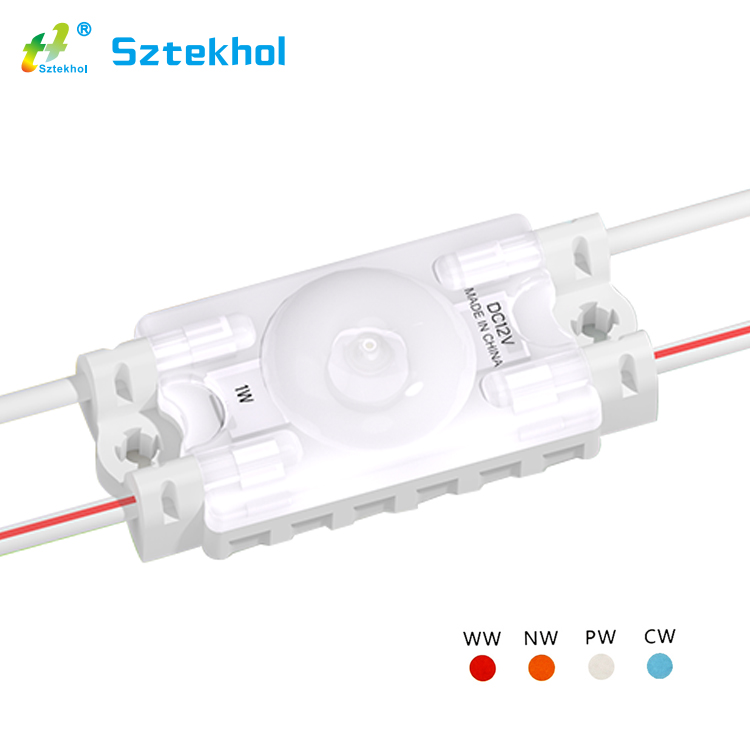

Features of Led Module
High-quality LED Module for luminous characters and letter, light boxes, LED Signage .Support OEM and ODM

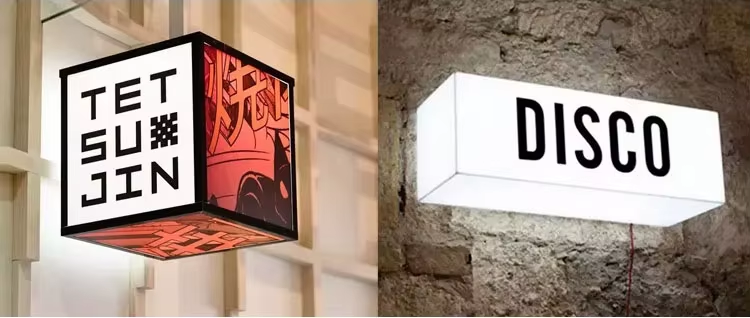

The 5730 SMD LEDs are mounted on the aluminum PCB board for better heat dissipation. Working on DC12V, various emitting colors are available. You can choose warm white, white, blue, green, yellow, or red. The waterproof LED modules’ waterproof level can reach IP68, and you can use them for outdoor applications. The back has 3M double-sided tape makes it easy to stick on the place you want to install,High Power Led Module is suit for advertising light box, billboard, or various channel letters signs, concealed lighting, LOGO signs, brand board,etc.
Technical data
Paramenter :
| Module Luminous flux | 85-90 lm/pcs* |
| Input voltage | DC12V |
| Max.power | 1 W/pcs |
| Color for choice | W |
| View angle | 170° |
| Waterproof rate | IP 68 |
| Operating Temperature | -10°C to +50°C |
| L70 Lifetime | 50,000 hours |
| Size | 40*18*11 mm* |
| Weight | 9g /PCS |
| ±10% |
Product Details of Led Module
Package of Led Module
