TH-6815 LED Module Smd 2835 Back Lighting Moudle

Model number : TH-6815

Certification : CE RoHS UL

Unique outlook, lighting efficacy

Constant current, 3-year warranty

Features of Led Module

product feature:Light Source with SMD2835/5730LED;Process with encapsulating compound good dust proof andwaterproof;High brightness. Special lens design, 160 degree wide angle, even distribution, eliminate spots, specially designed for backlit signage. Waterproof, shockproof, dustproof and moisture-proof. CE, ROHS and UL certified. Constant current, 3-year warranty

6815 LED Module Smd
6815 LED Module Smd

Application :

Large or medium channel letters

Widestroke channel letters

Advertisement displays

Dark vinyls

Shallow channel letters

Shallow box signs

Cloud signs

Logo boxes

Push through acrylic

Cove lighting

Accent lighting

Technical data

Paramenter :



Module Luminous flux 125-135 lm/pcs*
Input voltage DC12V
Max.power 1.44 W/pcs
Color for choice W.R.G.B.Y
View angle 160°
Waterproof rate IP 67
Operating Temperature -10°C to +50°C
L70 Lifetime 50,000 hours
Size 68*16.7*6.5 mm*
Weight 8g /PCS
±10%

Product Details of Led Module

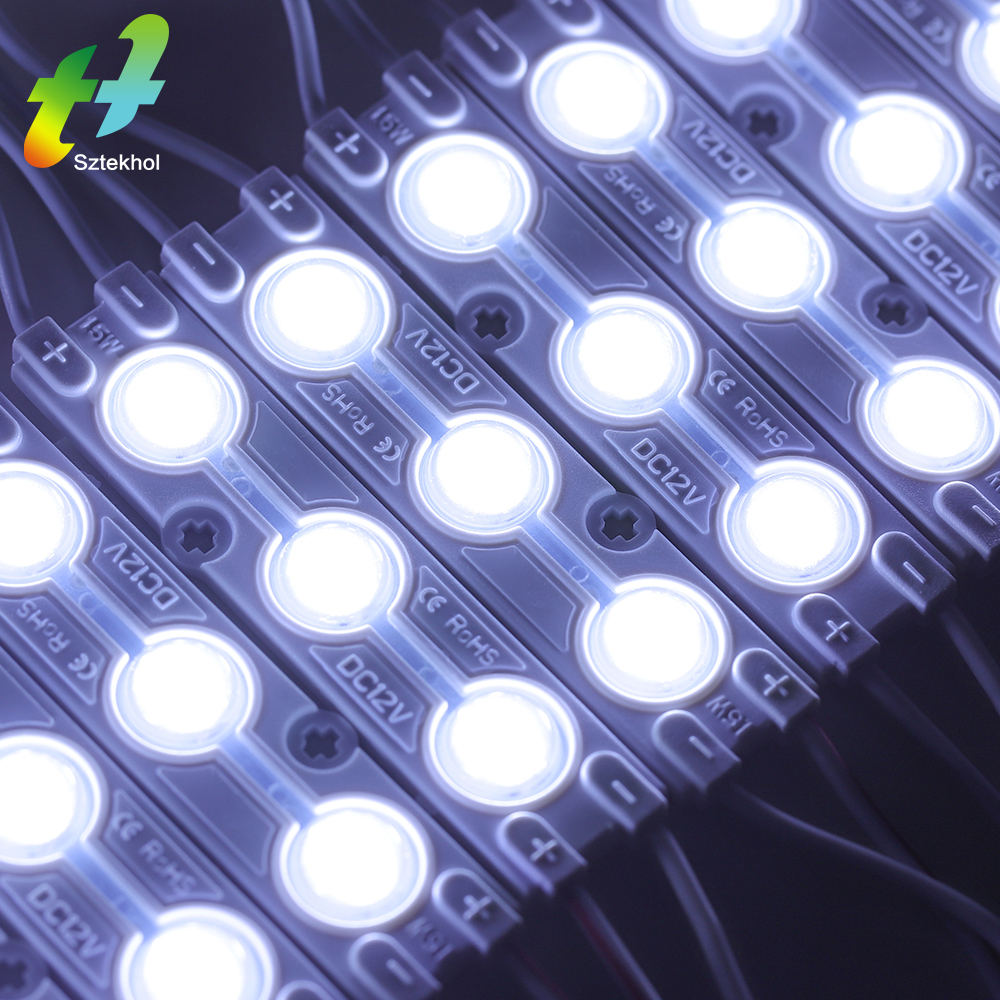

LED Module TH-6815
LED Module TH-6815
